Project Description

Motorcycle-battery-03 Motorcycle-battery-03
Motorcycle-battery-04 Motorcycle-battery-04
Motorcycle-battery-05 Motorcycle-battery-05
Motorcycle-battery-06 Motorcycle-battery-06
Motorcycle-battery-01 Motorcycle-battery-01
Motorcycle-battery-02 Motorcycle-battery-02
Model No Same Dimensions As YUASA Model Voltge(V) Capactiy  10HR(Ah) Dimensions(±MM) APPROX.WEIGHTW/O.ACID(Kg) APPROX.ACID PER BATTERY(L) Charge Current (A) Assembly Figure CCA/-18℃
L W H
6N4-BS 6 4 71 71 92 0.75 0.12 0.4 40
6N6-BS 6 6 99 58 107 0.95 0.13 0.6 60
YTR4A-BS 12 2.3 113 48 85 0.98 0.13 0.23 23
YTX4B-BS 12 2.3 113 39 85 0.78 0.12 0.23 23
YT4L-BS 12 3 114 70 85 1.3 0.19 0.3 –  + 40
YT4XL-BS 12 3 114 70 85 1.3 0.19 0.3 –  + 40
YB3L-BS YB3L-B 12 3 98 56 110 1.2 0.19 0.3 –  + 30
YB4L-BS YB4-B 12 4 114 70 85 1.3 0.23 0.4 –  + 50
YTX5L-BS 12 4 114 70 105 1.8 0.25 0.4 –  + 55
YTZ5-BS YTZ5-S 12 4 114 70 85 1.3 0.19 0.4 + – 45

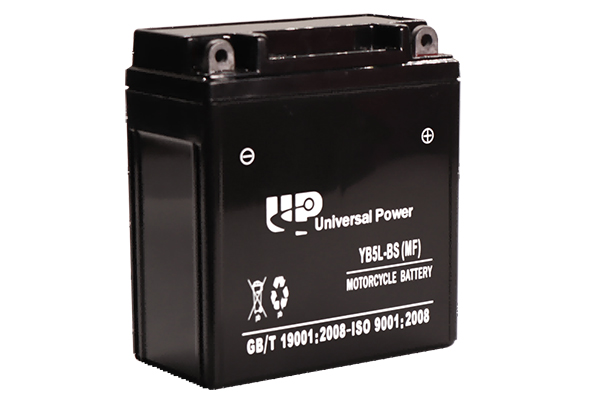

YB5L-BS YB5L-B 12 5 120 61 128 1.8 0.33 0.5 –  + 50
YTX7A-BS 12 6 151 87 93 2.5 0.37 0.6 + – 85
YTX7L-BS 12 6 114 70 130 2.2 0.36 0.6 –  + 75
YTZ6-BS YTZ6S 12 5 113 70 105 1.8 0.37 0.5 +  – 55
YTZ7-BS YTZ7S 12 5 113 70 105 1.8 0.37 0.5 +  – 55
YT7B-BS YT7B-4 12 6 150 65 92 2.12 0.33 0.6 +  – 85
YTX6.5L-BS 12N6.5-3B 12 6.5 139 66 102 1.9 0.31 0.65 –  + 60
12N7B-3A 12 7 148 60 131 1.81 0.37 0.5 +  – 70
12N7-4B 12 7 134 75 132 2.06 0.333 0.65 +  – 70
12N9-4B 12 9 134 75 134 2.65 0.5 0.9 +  – 90
YT9-BS 12 9 150 70 105 2.45 0.41 9 +  – 90
YTR9-BS 12 8 151 87 106 2.85 0.43 0.8 +  – 120
YTX9-BS 12 8 151 87 106 2.85 0.43 0.8 +  – 90

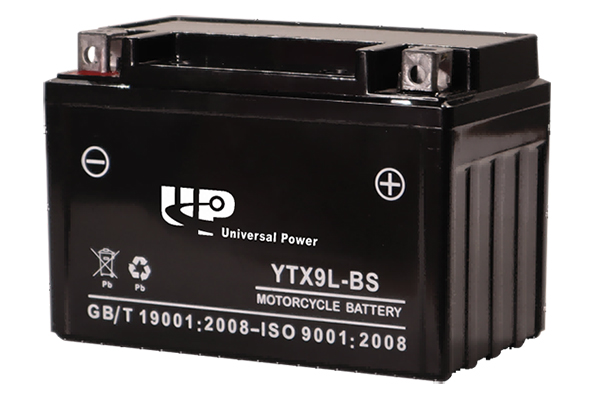

YTX9L-BS 12 8 151 87 106 2.85 0.43 0.8 –  + 90
YT9B-BS YT9B-4 12 8 150 69 102 2.45 0.41 0.8 +  – 100
YTZ10-BS YTZ10-S 12 8.5 151 87 94 2.85 0.58 0.85 +  – 130
YB9A-BS YB9-A 12 9 135 76 133 2.65 0.5 0.9 +  – 90
YTX12-BS 12 10 151 87 130 3.6 0.56 1 +  – 160
YTX12A-BS 12 10 151 87 94 2.85 0.49 1 +  – 120
YTX12L-BS 12 10 151 87 130 3.6 0.56 1 –  + 160
YT12B-BS YT12B-4 12 10 150 69 130 2.98 0.52 1 +  – 115
YTZ12-BS YTZ12-S 12 11 150 87 106 2.85 0.5 1.1 +  – 140
YT12C 12 12 150 70 145 3.8 0.56 1 +  – 180
YB14A-A2 12 14 134 89 166 4.54 0.66 1.2 +  – 170
YTX14-BS 12 12 151 87 146 4.2 0.66 1.2 +  – 180
YTX14L-BS 12 12 151 87 146 4.2 0.66 1.2 –  + 180
YTX14AH-BS 12 12 134 89 166 4.12 0.64 1.2 +  – 160
YTX14AHL-BS WP14L-2 12 12 134 89 166 4.12 0.64 1.2 –  + 160
YT14B-BS YT14B-4 12 12 150 69 145 3.64 0.61 1.2 +  – 135
YTZ14-BS YTZ14S 12 12 150 87 106 2.85 0.5 1.2 +  – 140
YTX15-BS 12 13 175 87 130 4.44 0.7 1.4 +  – 150
YTX16-BS 12 14 151 87 161 4.76 0.72 1.5 +  – 200
YTX16L-BS 12 14 151 87 161 4.76 0.72 1.4 –  + 200
YTX16-BS-1 12 14 151 87 161 4.76 0.72 1.4 +  – 200
YTX16L-BS-1 12 14 151 87 161 4.76 0.72 1.4 –  + 200
YTH16-12 12 14 151 87 161 4.76 0.72 1.4 +  – 200
YTX20-BS 12 18 175 87 155 5.2 0.95 1.8 +  – 210
YTX20L-BS 12 18 175 87 155 5.2 0.95 1.8 –  + 210
YTX20CH-BS YTX20A-BS 12 18 150 87 161 4.76 0.92 1.8 +  – 220
YTX20H-BS 12 18 175 87 155 5.2 0.89 1.8 +  – 250
YTX20HL-BS 12 18 175 87 155 5.2 0.89 1.8 –  + 250
YTX19-BS 12 19 175 100 155 5.27 0.96 1.9 +  – 190
YTX19L-BS 12 19 175 100 155 6.2 0.96 1.9 –  + 190
YIX50-BS 12 20 205 87 159 6.78 1.12 2 +  – 240
YIX50L-BS 12 20 205 87 159 6.78 1.12 2 –  + 240
YTX24HL-BS 12 22 205 87 159 6.78 1.14 2.4 –  + 300
YTX30-BS 12 28 168 127 177 8.5 1.38 2.8 +  – 280
YTX30L-BS 12 28 168 127 177 8.5 1.38 2.8 –  + 280
